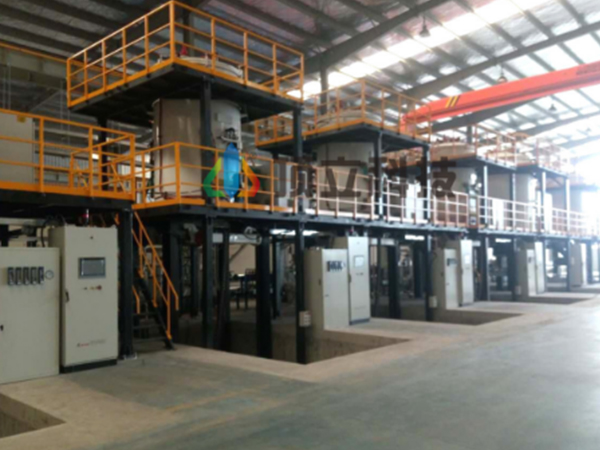

C-C / Carbon-ceramic Brake Disc Preparation Equipment

Description

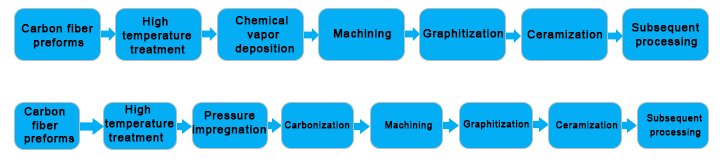

The furnace is mainly used for the production of high performance brake disc made of C/C and Carbon/ceramic materials.

Optional Configuration of C-C / Carbon-ceramic Brake Disc Preparation Equipment
1. Furnace door: lead screw lift / hydraulic lift / manually-operated lift, manual tight / auto lock-ring tight.
2. Furnace vessel: all carbon steel / inner layer stainless steel / total stainless steel / Q345Q.
3. Furnace hot zone: soft carbon felt / soft graphite felt / hard composite felt / refractory brick ＋ceramic fiber / CFC.
4. Heating element: isostatic press graphite / fine graphite / Ni-Cr; Fe-Cr-Nb.
5. Muffle: high purity, high strength and high density graphite / fine size graphite / SUS316L.
6. Process gas system: volumetric flow meter / mass flow meter; manual valve / auto valve / foreign brand / Chinese brand.
7. Vacuum pump and gauge: foreign brand / Chinese brand.
8. PLC: OMRON/Siemens.
9. Temperature controller: SHIMADEN / EUROTHERM.
10. Thermocouple: C / S / K / N type.
11. Infrared meter: Single color / double color, CHINO / Raytek.
12. HMI: simulation screen / touch screen / industrial personal computer.
13. Electric components: CHINT / Schneider / Siemens.
14. Medium frequency power: ICBT / KGPS.

Specifications

C-C / Carbon-ceramic Brake Disc Preparation Equipment
Equipment Type	Chemical vapor deposition furnace				Vacuum graphitization furnace
Spec/Model	VCVD-0610-C	VCVD-1120-C	ICVD-0610-C	ICVD-1120-C	VIG-0610-C	VIG-1120-C	HVG-131320-C
Usable Space (W × H × L) (mm)	φ600 × 1000	φ1100 × 2000	φ600 × 1000	φ1100 × 2000	φ600 × 1000	φ1100 × 2000	1300 × 1300 × 2000
Max. Temperature (°C)	1200	1200	1200	1200	2600	2600	2600
Temperature Uniformity (°C)	±5	±7.5	±15	±20	±15	±20	±10
Ultimate Vacuum (Pa)	50	50	50	50	50	50	50
Equipment Type	Siliconizing furnace			Vacuum carbonization furnace		Vacuum pressure impregnation furnace
Spec/Mode	ISII-0610	ISII-1120	VSII-131320	VVCI-0608	VVC-1015	VPII-0608	VPI-1015
Usable Space (W × H × L) (mm)	φ600 × 1000	φ1100 × 2000	1300 × 1300 × 2000	φ600 × 800	φ1000 × 1500	φ600 × 800	φ1000 × 1500
Max. Temperature (°C)	2000	2000	2000	1000	1000	400	400
Temperature Uniformity (°C)	±7.5	±7.5	±10	±7.5	±10	±10	±15
Ultimate Vacuum (Pa)	50	50	50	50	50	50	50
Ultimate Vacuum (MPa)	/	/	/	/	/	5	5
